Full Automatic Garlic Clove Instant Freezer Machine

Full Automatic Garlic Clove Instant Freezer Machine is used to instantly freeze the garlic clove which makes garlic clove can keep a long time. The instant freezer internal enviro ...
Product Details

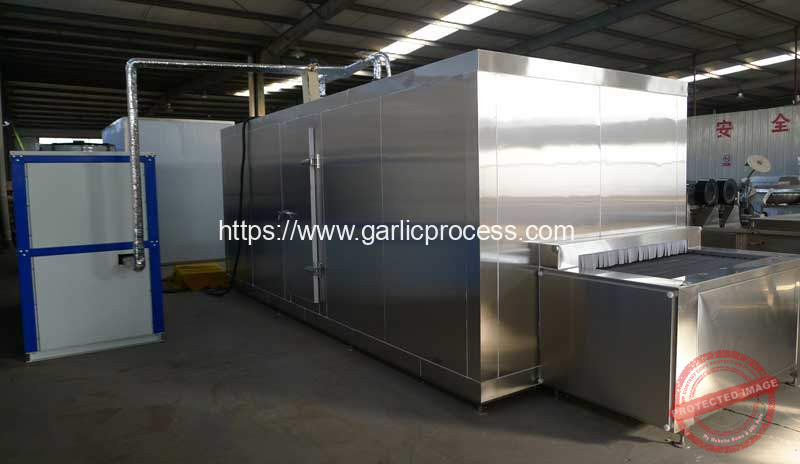

Garlic-Clove-IQF-Machine-Manufacture

Full Automatic Garlic Clove Instant Freezer Machine is used to instantly freeze the garlic clove which makes garlic clove can keep a long time. The instant freezer internal environment temperature can reach -25 centigrade and the garlic clove after a freeze can reach 18 centigrade. Automatic Tunnel Garlic Clove Freezer Machine (net belt tunnel quick freezer) uses a stainless steel net belt as the conveyor. According to different varieties, the products to be frozen can be put in the tray or directly on the conveying belt, and be rapidly frozen by the wind blowing from the top to the bottom or by the side wind.

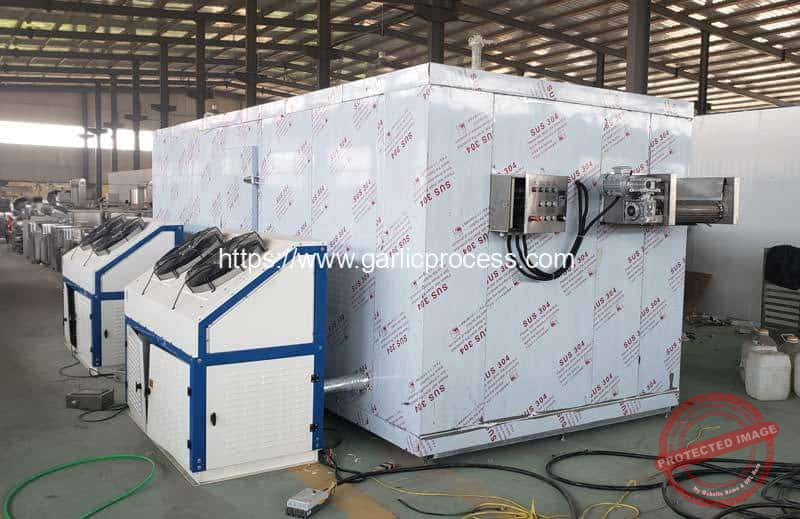

Automatic-Garlic-Clove-Tunnel-Instant-Freezer-for-Keeping Garlic Clove Fresh

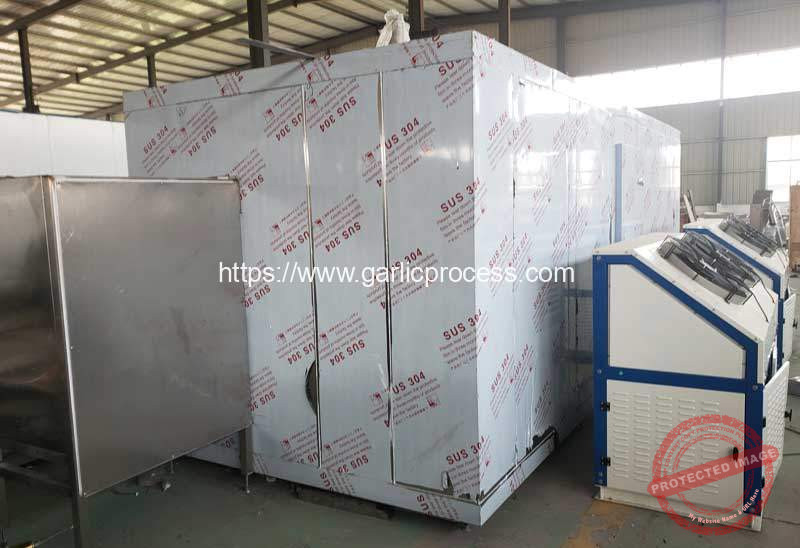

Automatic-Garlic-Clove-Instant-Freezer-for Keep Garlic Clove Fresh

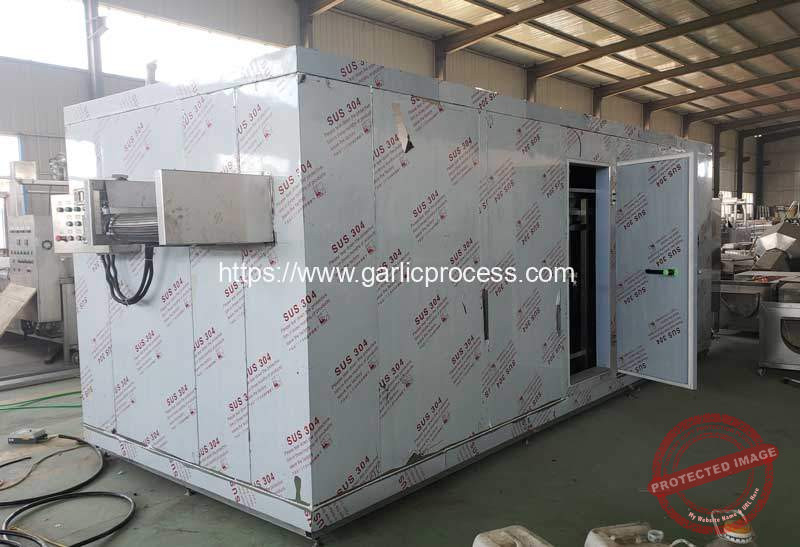

Automatic-Garlic-Clove--Instant-Freezer

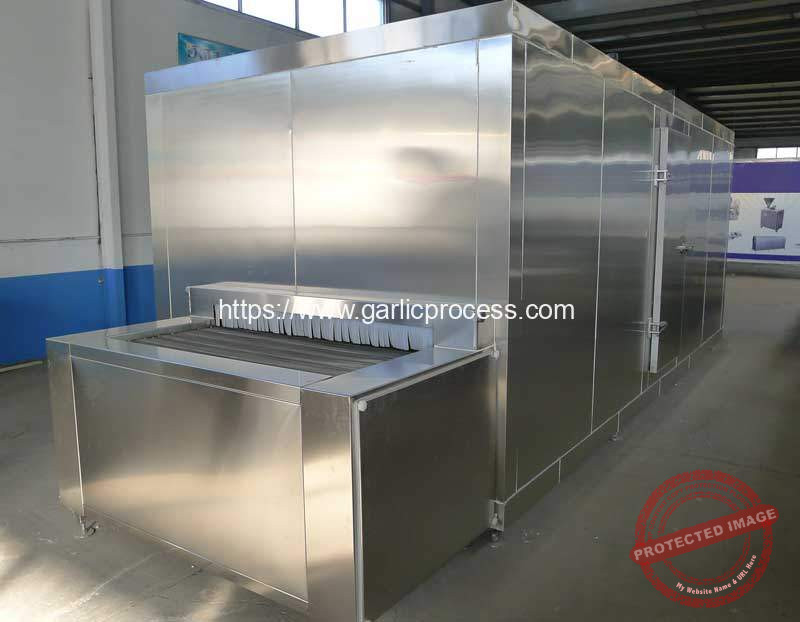

Full-Automatic-Tunnel-Type-Garlic-Clove-Instant-Freezer

Advantages of Full Automatic Garlic Clove Freezer Machine

  1. High speed, about 5-10 minutes quick freezing, saves time cost.
  2. Environmental to earth and human. It is a popular trend.
  3. Low noise, like a home refrigerator.
  4. Little moisture loss, improve product quality and worth.
  5. Low power consumption, 3 hours consume about 1 kWh.
  6. Low operating cost, 1-ton liquid nitrogen can freeze about 3 tons product.
  7. Little damage to cell tissue, as the speed is quick, so it has little damage to cell tissue.
  8. Easy to operate, any people can operate.
  9. Low labor cost, one people can finish all the freezing work.

Specification of Automatic Tunnel Garlic Clove Quick Freezer Machine

Model RM-TFRE300 RM-TFRE500 RM-TFRE1000 RM-TFRE1500 RM-TFRE2000
Production (kg/h) 300 500 1000 1500 2000
Freezing Temp (℃) -35 -35 -35 -35 -35
Evaporation Temp (℃) -42 -42 -42 -42 -42
Feeding Temp (℃) 25 25 25 25 25
Out-feeding Temp (℃) -18 -18 -18 -18 -18
Cooling Capacity (kW) 48 75 150 218 290
Refrigerant R717, R404A R717, R404A R717, R404A R717, R404A R717, R404A
Defrosting Method Water, Hot ammonia
Defrosting Times 1time/24hours
Products Standard products like frozen french fries, dumplings, spring roll, the freezing time is about 30min, and the put density is 5.8kg /m2. Other foods need adjusting depending on above.
Power(KW) 7.5 10.5 38 45 55
Dimensions (L*B*H) m 8.5*3.4*2.85 13.5*3.4*2.85 20.0*4.0*2.85 20.0*6.0*2.85 26.0*6.0*2.85

Working Video of Full Automatic Instant Freezer


Company Profile

Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of Garlic Processing Machine with 10 years’ experience. In the past 10 years, we focused on researching and designing the machinery which could process the garlic into different types. Romiter Garlic Processing Machine meat Europe Quality Requirement. with CE Certification

Romiter Group provides a complete Garlic Processing Solution, which includes Garlic Peeling MachineGarlic Clove Separating Machine, Garlic Clove Separating and Grader MachineGarlic Cleaning Machine, Garlic Concave Cutting MachineGarlic Mesh Bag Packing Machine, Garlic Mesh Bag Clipping MachineGarlic Powder Production LineGarlic Weighting Packing MachineGarlic Grader Machine and Garlic Harvester Machine

Romiter Group can provide customized products for customers. Welcome to contact us for more information.
